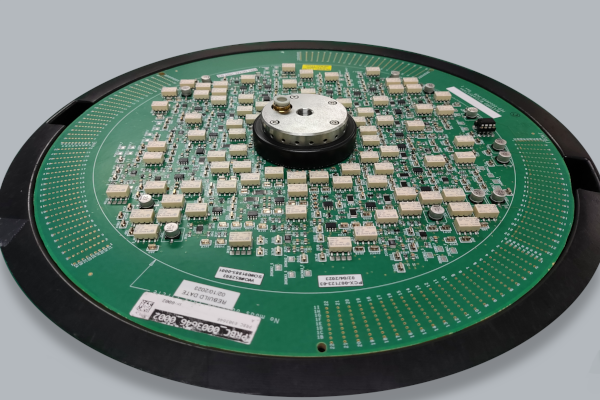

Vertical Probe Card

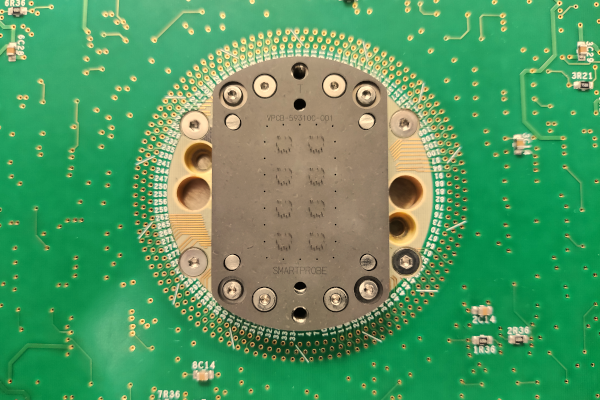

After years of research and development, Smartprobe have successfully launched SPB100. With our SPB100 and SPB200, probe pins replacement is rendered effortless. This technology offers more stable testing, and eliminates pin stuckup. Further, our ability to produce pins using our in-house stamping machines, availability of pins will present no difficulty, with on-site support, and competitive costs.
| Key Features |
|---|
| More stable testing |
| Eliminates pin stuckup |
| In-house production |
| On-site Support |
| Competitive costs |

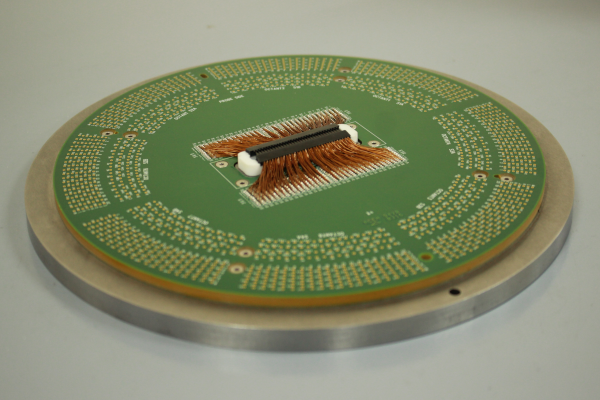

Cantilever Probe Card

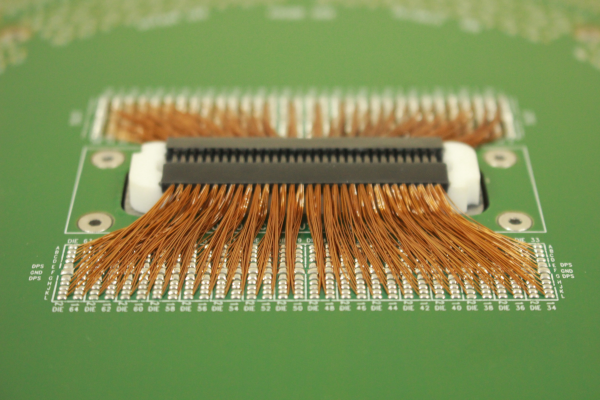

Smart probe is the pioneer in cantilever probe cards manufacturing in the Philippines, established in 2006. Developed with Minimal Scrub Cantilever Technology, SPI's Cantilevers have a 35-micron pitch for electrical testing of HDDs and digital storage.
| Specs | STD | MST |
|---|---|---|
| P&A Tolerances | ±0.3 (7.5μm) | ±0.1-0.2 (2.5-5μm) |
| Force | 1-3 Gram/Mil | 1-3 Gram/Mil |
| Scrub | Standard | Minimal |
| Number of Layer | Up to 10 | Up to 5 |
| Min Pitch | 35 Microns | 45 Microns |

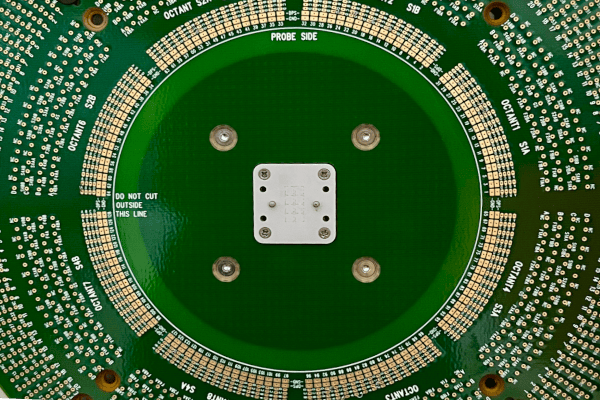

Vertical Cobra Probe Cards Specifications
We have improved the Cobra pin design and probe head structures to increase card longevity and stability.
| SPECS | DUKE Standard cobra with fixed Mylar |
RIPFORD Advanced Cobra, Floating and fixed Mylar |
FALCON Advanced Cobra with N2 flow inside probe head |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Diameter (mils) | 2.5, 3 | 1.5,2,2.5,3 | 1.5,2,2.5,3 | ||||||||||
| Material |
|
||||||||||||
| Probe Pin Type |
|
||||||||||||
| Hardness (Hv) |
|
||||||||||||
| Space transformer | Interposer/wire transformer | Interposer/wire transformer | Interposer/wire transformer | ||||||||||
| Pin count | 2000 | 2000 | 2000 | ||||||||||
| Temp | -40 - 150°C | -40 - 150°C | -40 - 150°C | ||||||||||
| Tip Shape | Pointed/Flat | Pointed/Flat | Pointed/Flat | ||||||||||
| Min Pitch | 90 Microns | 70 Microns | 70 Microns | ||||||||||
| Min Pad Size | 45/45 Microns | 45/45 Microns | 45/45 Microns | ||||||||||
| New build lead time | 4-6 weeks | 4-6 weeks | 5-6 weeks | ||||||||||
| Repair/Rebuild lead time | 3-4 weeks | 3-4 weeks | 3-4 weeks | ||||||||||
SPB Series Technical Specifications
| SPECS | SPB100 Advance Buckling |
SPB100-N With N2 capability |
SPB200 Advance Buckling 2.0 |
||
|---|---|---|---|---|---|
| Diameter (mils) | 1.5,2,2.5 | 1.5,2,2.5 | 1.5,2,2.5 | ||
| Material | P7 | BeCu | P7 | BeCu | H3C |
| Probe Pin Type | - | ||||
| Hardness (Hv) | 350 | 230 | 350 | 230 | 480 |
| CCC | 0.5A | 0.6A | 0.5A | 0.6A | 0.8A |
| Space transformer | Interposer/wire transformer | ||||
| Pin count | 2000 pins | ||||
| Temp | -40 - 150°C | ||||
| Tip Shape | Pointed/Flat | ||||
| Min Pitch | 80 Microns | ||||
| Min Pad Size | 45x45 Microns | ||||
| New build lead time | 4-6 weeks | ||||
| Repair/Rebuild lead time | 4 weeks | ||||
