Test Sockets
Products
Test Socket
Test Socket Specifications
We can fabricate high quality test socket with different materials based on customer requirement, from ceramic to different high quality engineering plastics. Our basic contact pins are Gold plated to ensure low contact resistance. We also support other plating materials, contact finger, pogo pins depending on our customer requirements.
Available Package Specifications
| Package Name | Types of Pins | No. of Pins | Min. Pitch |
|---|---|---|---|
| Mini QFN10 | C Pin | 10 | 0.2mm |
| 3WCSP | Pogo Pin knife and round tip | 8 | 0.37mm |
| 28 Lead SOIC | Pogo pin | 28 | 1.27mm |
| QFN, WQFN, UDFN | Pogo pin, Crown and Round head | 28 Max | 0.4mm |
| 32L QFN 5x5 Strip test socket | Crown and Round head | 1980 | 0.5mm |
| BGA confirmation Test Socket | Pogo pin both end crown | 900 | 0.8mm |
Product Gallery

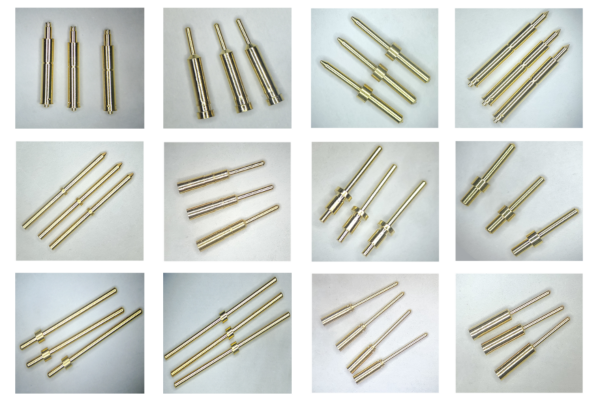

Pogo Pins

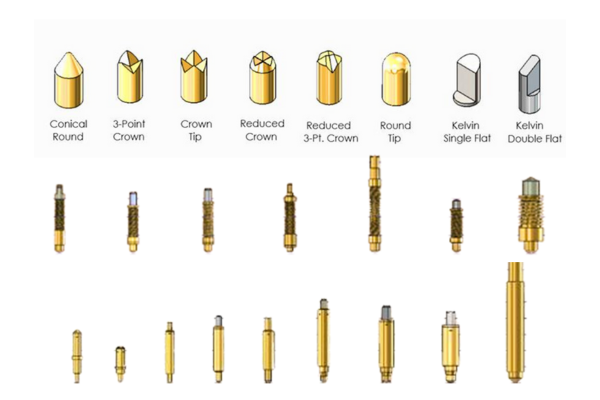

Available Pogo Pin Options
- 0.8 mm crown, 1.5 x 9.6 mm
- 1.0 mm crown, 3.5 x 11.4 mm
- 0.5 mm crown, 3.7 x 14.6 mm
- 0.3 mm crown, 3.5 x 9.6 mm
- 0.8 mm barbed, 3.7 x 14.6 mm
- 0.5 mm crown, 3.7 x 9.6 mm
Material: Nickel, Gold plated
